Features
1. Using the up/down vacuuming mode, a rational programme can be customized according to customer requirements, and the dust collection effect is good. (Upper and lower vacuums are not interchangeable)
2. The substrate is fixed more firmly during cutting to avoid errors in cutting accuracy caused by poor positioning.
3. The special jig is made, which is easy to fix the product to be cut to ensure the high precision cutting requirements of the product.
4. An anti-static generator is attached to the front section of the spindle for continuous blowing during cutting, which reduces the static electricity generated during high-speed spindle cutting, which can avoid damage to the parts due to static electricity.
5. Adopt a safety door to reduce noise and dust and improve safety. The vacuum cleaner is equipped with a vacuum box (it can be scheduled and maintained according to the capacity cutting demand or the dust collection time).
Specifications
| Function Items | Hardware Demand |

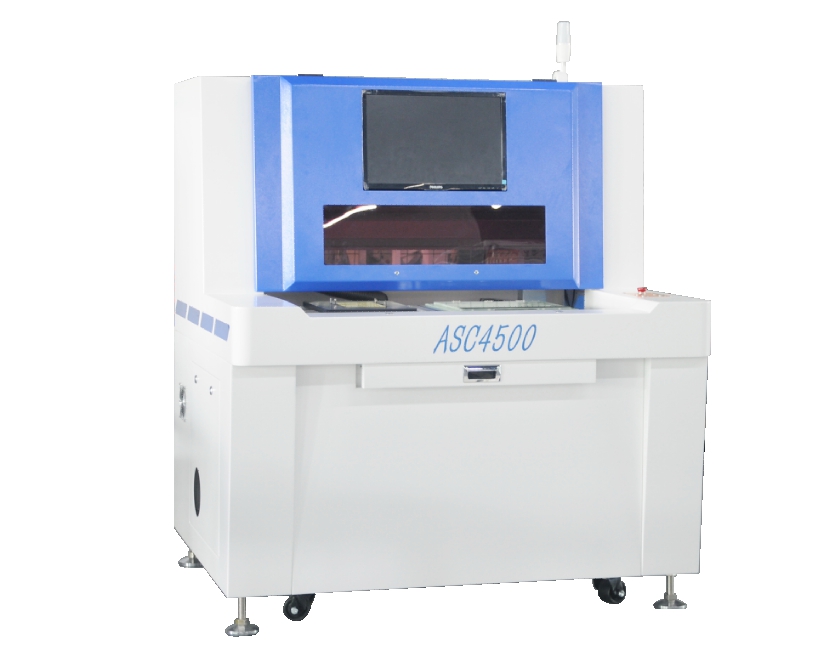

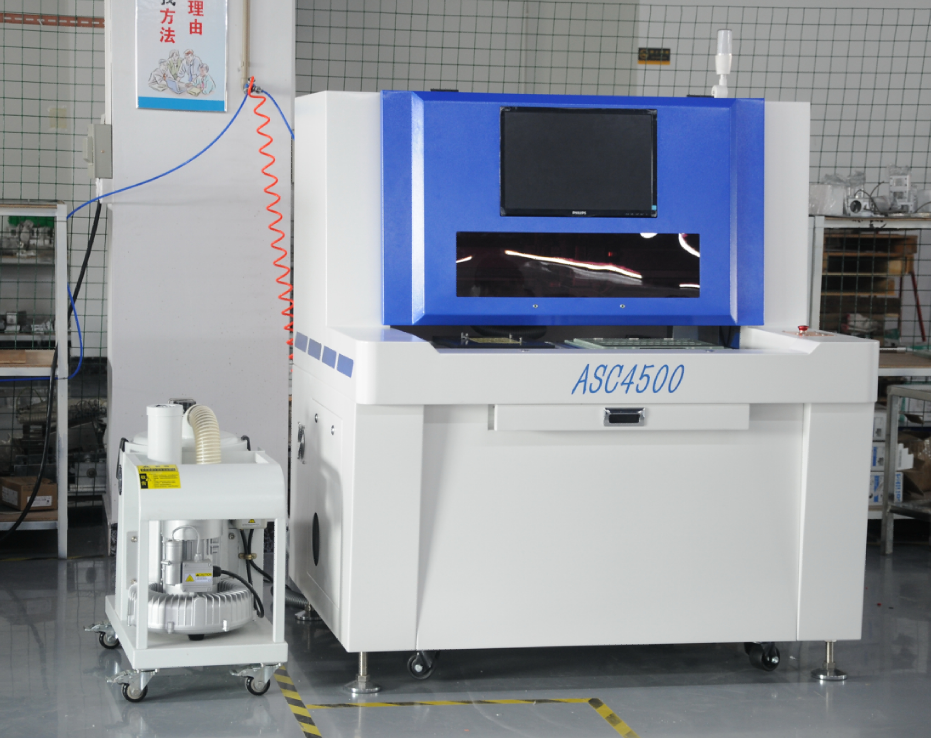

| Model | ASC-4500 |
| Dimensions | L1400*W1200*H1800mm |
| Power | 220V/50HZ |
| Machine Wattage | 1.5KW |
| Weight | About 700KG |
| Cleaner Wattage | 2.2KW Vacuum cleaner power supply：Three-phase 380V |
| Table Dimension | 900mm*360mm |
| Cutting Speed | 0-100mm/s |

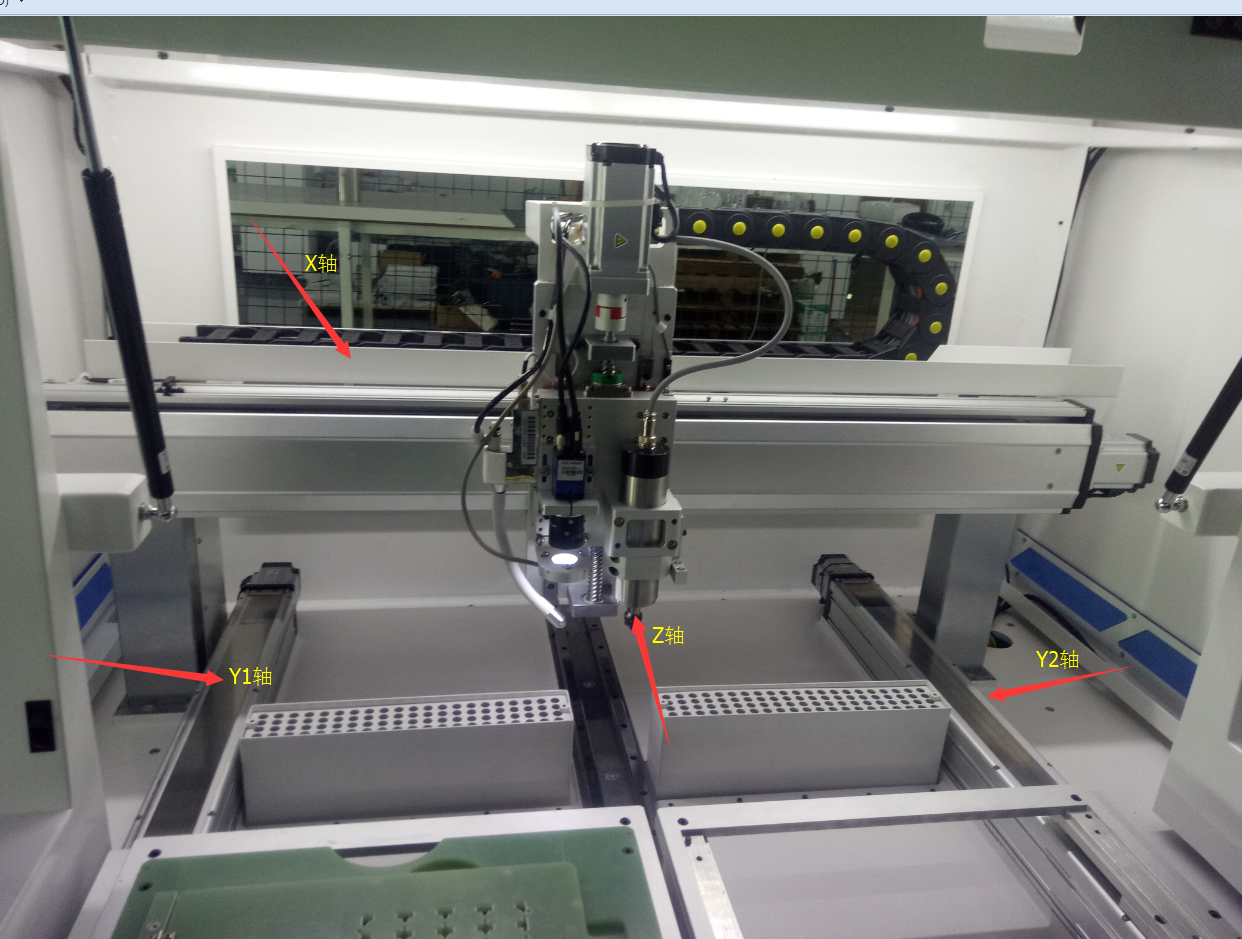

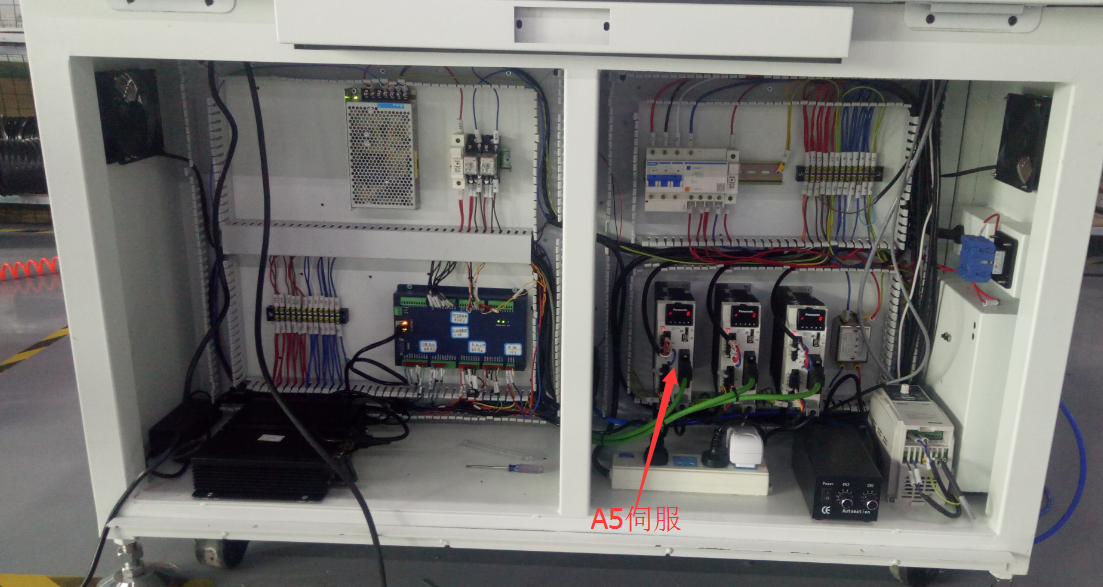

| X, Y, Z axis driving speed | X,Y 1000mm/s(min)，Z 750mm/s(min) driven by servo motor |
| Repeatability Accuracy | ±0.02mm |

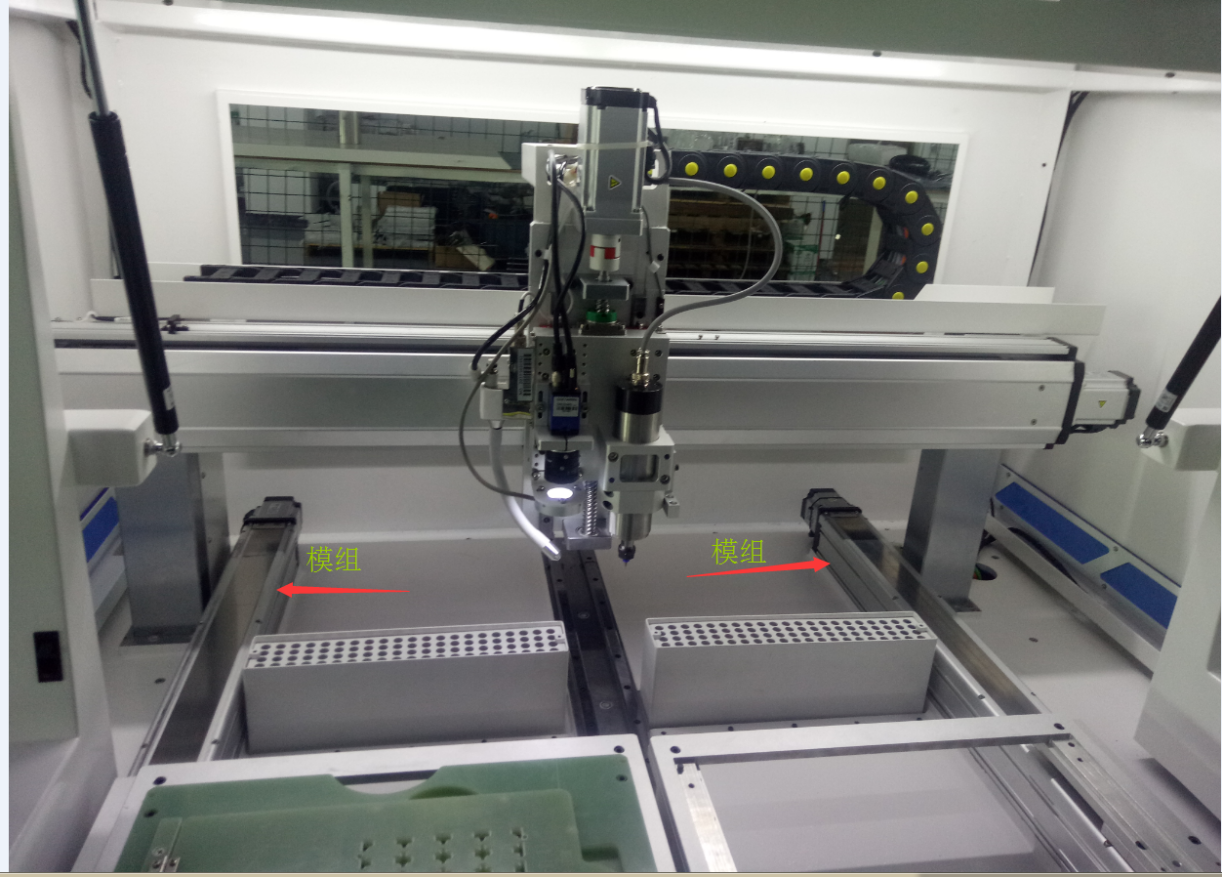

| Working Area |
Left：X:350mm，Y1：350mm，Z：0-50mm Right：X:350mm，Y2：350mm，Z：0-50mm |
| PCB Thickness | 0.5-2mm(or thicker) |
| Router Bit Diameter | 0.8-2.0mm (Tool holder diameter 3.175) |
| Cutting Precision | ±0.02mm |
| Cutting Ability | Linear, Circular, U-curve, Arc, L-curve |
| Cutter Change | Manual, tools needed |
| Cutter Atrition System | Smart to set the no.of knife section (0-3) |
| Break Detection | No, can be installed with the programme |
| Cutter Life Control | controlled by Program |
| Table Number | 2 |
|
Table Function |
2 tables running in parallel |
| Spindle Speed | 60000rpm |
| Spindle Cooling System | air cooling |

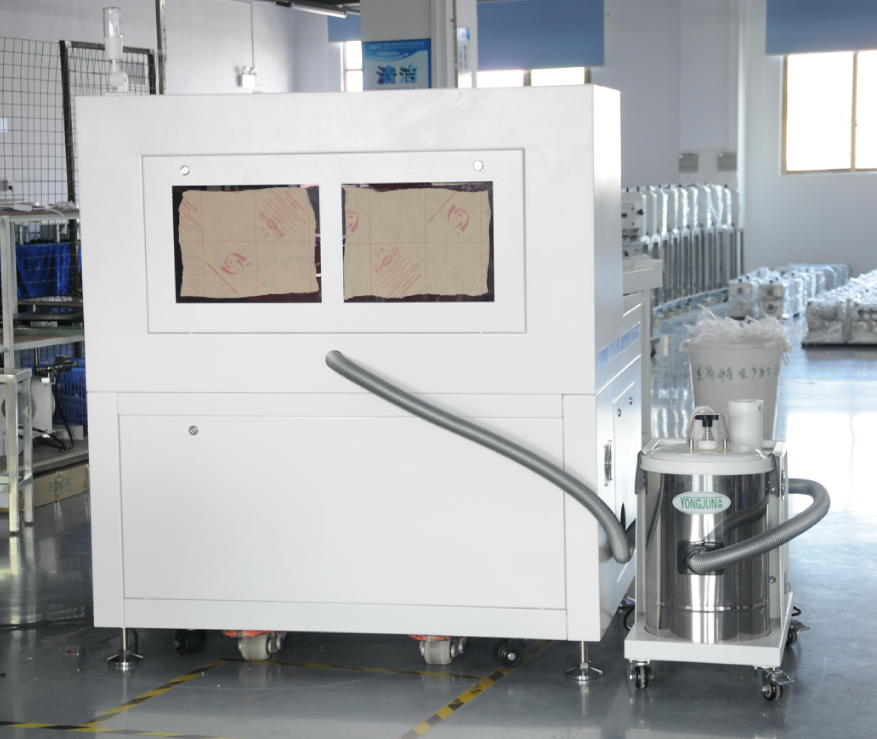

| Cleaner Mode | collect dust downside |
| Working Power | 380V, 50HZ |
| Air press | 0.5-0.7Mpa(above) |
| Safety Device | security door or sensor |
| Mode | offline, load and unload PCBA by hand |
| Auto failure test and repair mode | Self-diagnosis, display failure information in real time, query IO state visually, easy for troubleshooting |
| Computer and Operation System | PIC,Windows 7 or more advanced version |
| Program Backup | USB |
| Software access | Password protection, the operator enter corresponding interface according to important parameters. |
| Programming | Visual interface, the cutting point capacity for a single program should be over 400, dynamic simulation of cutting schedule. |
| Auto correction of the mark point | With Mark point automatic calibration function (Yes) |
| Fixture | universal fixture |
| Voice Control | ≦78 dB（measured in 1M’s distance） |
| Maintenance Period | Over 1 year for the whole machine, and over 2 years for the spindle, and the spindle enjoys 3000 hours’ maintenance during the period |
| Technology Support | Offer service of operation, programming, hardware caring and maintenance training; free upgrade of application. |
