Features:
- UPS system modular design, N+X redundancy, online hot swap upgrade and expansion.
- Super load adaptability and load capacity, super power grid adaptability.
- Green energy-saving power supply: the efficiency of the whole machine is greater than 95%, the input power factor is greater than 0.99, and the input current harmonics are less than 3%.
- The use of centralized bypass design effectively improves the reliability of parallel current sharing control, system logic coordination, and fault tolerance.
- The power module is equipped with dual DSP controllers, and the module is independently controlled and has no single point of failure risk.
- Rectification, inverter, charging and discharging all realize DSP digital control.
- The use of IGBT modules instead of discrete devices greatly improves the reliability of power modules and systems.
- Front maintenance, providing upper and lower wire entry methods, convenient for users to wire.
- Large touch screen human-machine interface, rich in information.
- Independent charging system, powerful charging capacity, and complete battery management scheme.
- Fully digital module parallel technology, excellent circulation index.
- It can be installed close to other equipment, saving room space.
- Redundant intelligent speed regulating fan, low noise and energy saving.
- The power distribution system is integrated inside the system cabinet, which is convenient for installation and saves user investment.
- Excellent generator matching performance.
- It can be started by battery DC (cold start) for easy operation.
- All circuit boards adopt three-proof technology.
Specifications:
|
Capacity |
APNM30-400KVA |
|
|
Main input |
||
|
Input voltage |
380V/400V/415V |
|
|
Input frequency |
50/60HZ |
|
|
Power Factor |
＞0.99 |
|
|
Current distortion rate |
THDI＜3％ |
|
|
Voltage range |
-40%~﹢25% -40%~-20% power linear derating |
|
|
Frequency Range |
40-70HZ |
|
|
Battery |
||
|
Type of battery |
Lead-acid maintenance-free battery |
|
|
Battery voltage |
360-480VDC（30-40 even number can be set） |
|
|
Charging power |
20%*system power |
|
|
Charging voltage accuracy |
±1％ |
|
|
Bypass |
||
|
Bypass voltage |
380V/400V/415V |
|
|
voltage range |
Default -20%~﹢15%, -40%, -30%, -10%, ~+10% and other range values, can be set by software |
|
|
Overload capacity |
135％long term work |
|
|
|
135%＜load＜150%, 6 minutes |
|
|
|
Load> 150%, working time longer than 100MS |
|
|
Output |
||
|
The output voltage |
380V/400V/415V |
|
|
Voltage accuracy |
±0.5% (balanced load), ±1% (unbalanced load) |
|
|
Power factor |
0.99 |
|
|
Three-phase accuracy |
120°±5° |
|
|
Peak ratio |
3:01 |
|
|
Overload capacity |
105%, transfer to bypass after 1 hour |
|
|
|
110%, transfer to bypass after 10 minutes |
|
|
|
125%, transfer to bypass after 1 minute |
|
|
|
＞150%, transfer to bypass after 200ms |
|
|
System |
||
|
System efficiency |
Normal mode: 95% / Economic mode: 98% |
|
|
Battery mode efficiency |
98% |
|
|
Display |
LCD+LED, keyboard |
|
|
Current distortion rate |
THDI＜3％ |
|
|
Protection level |
IP20 |
|
|
Communication Interface |
RS232, RS485, dry contact, SNMP card, EPO, generator interface |
|
|
Wiring |
Support up and down lines |
|
|
Operating temperature |
0-40℃ |
|
|
Storage temperature |
-25~70℃ |
|
|
Relative humidity |
0-95％(No condensation) |
|
|
Noise（dB) |
＜55dB |
|
|

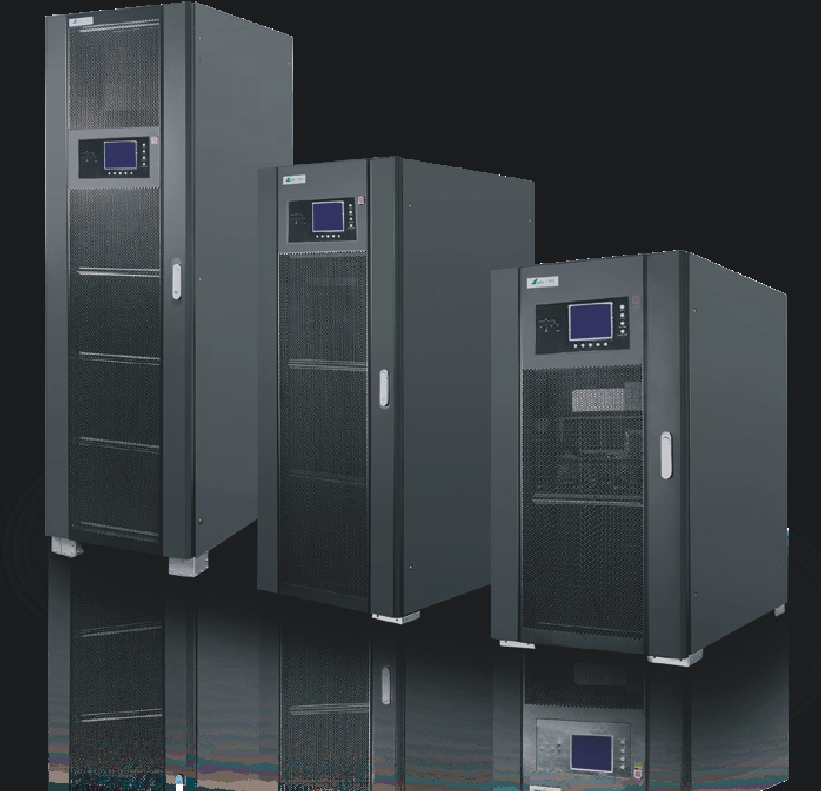

Module cabinet |
UPS can be expanded to 10 power modules at most; and adopts N+1 or N+X redundant configuration, this structure allows users to add or reduce power modules by themselves, and power modules use double conversion technology and have input power factor correction functional。 |
|
|
Power module |
In order to improve the availability of the entire UPS system and reduce subsequent maintenance costs, each power module is required to adopt a redundant design. After any power module fails, other modules can still work normally, and the power modules support online hot swap replacement.。 |
|
|
Size （W*D*H)MM |
3 Module cabinets |
600×900×1150 |
|
|
6 Module cabinets |
600×900×1550 |
|
|
10 Module cabinets |
600×900×2000 |
|
|
Power module |
440×650×132 |
|
Weight （KG） |
3 Module cabinets |
120 |
|
|
6 Module cabinets |
176 |
|
|
10 Module cabinets |
196 |
|
|
Power module |
40 |
