Radial Insertion Machine S-3010

Ask Price
The S3010A brings a new level of productivity to radial component sequencing and insertion, offering consistently high throughput regardless of component type.


  • High real throughput (12000 CPH)
  • World-class reliability (1000 ppm)
  • Manual Load or Automatic PCB Load/Unload
  • Multiple clinch options with programmable height to avoid damaging SM components
  • Scalable production – 10 to 100 inputs, (In-Line or Straight-Back)
  • Single, dual, triple, and quad-span tooling
  • Full range of insertion spans from 2.5mm to 10.0mm, including 3.5mm
  • Widest component range – up to 22mm tall with no derate
  • Component value and polarity verification prior to Insertion
  • Intuitive, graphical operator environment


Radial insertion machine (10 stations)

1) Triple span 2.5/5.0/5.7mm,

2) Spec of speed:18000PCS/H

3) Insert direction:0°-360°, 1°increment

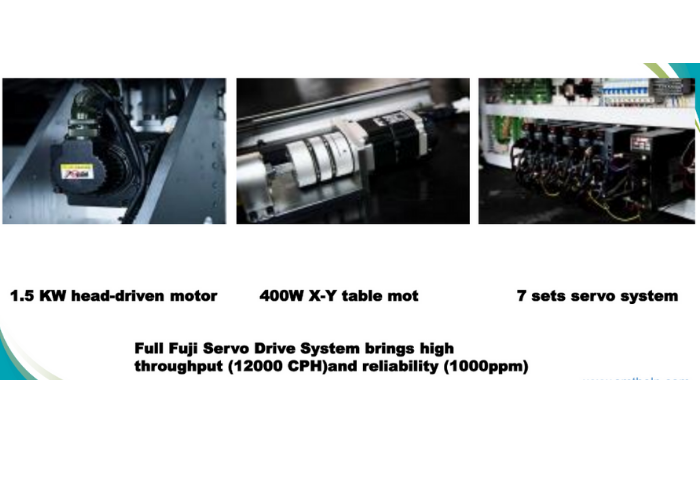

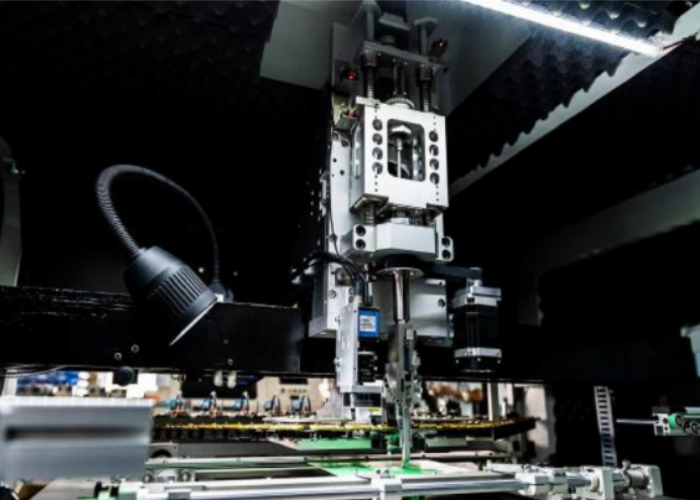

4) Servo motor drived insertion head(13.0mm)and clinch base "N" type.

5) Components require:cstandard tape packed radial leads components

6) Components available:cCapacitor, Transistor, LED lights, Key Switch, Resistor, Connectors, Fuse Block and other vertical tape packed materials

7) Core Machine Size (LxWxH)1800x1600x1800mm,

8) Core Machine Weight:1000KG

9) Power supply:220V, AC (single phase) 50/60 HZ

10) Air pressure: 0.6MPA, 0.3m3/minutes

11) Circumstance temperature: 10° C. to 35° C.

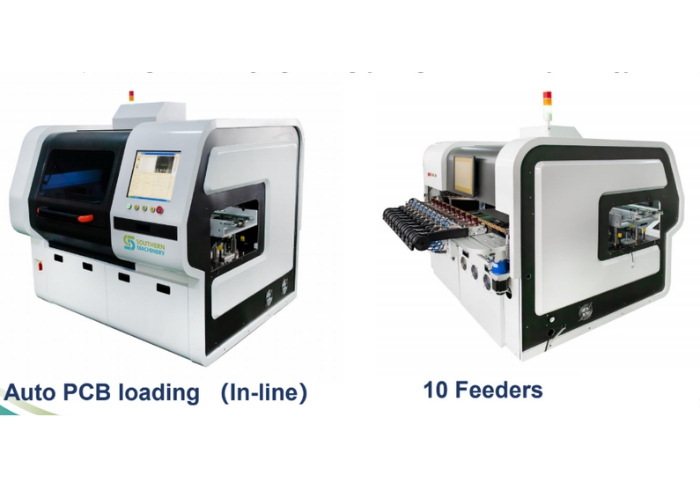

12) PCB transfer mode: automatic PCB loading/unloading

13) PCB Size:(Min)50 mm x50mm, (Max)400mm x 400mm

14) PCB thickness:0.79-2.36MM

15) Clinch Length: 1.5-2.2mm(adjustable)

16) Clinch degree: 10o-35o(adjustable)

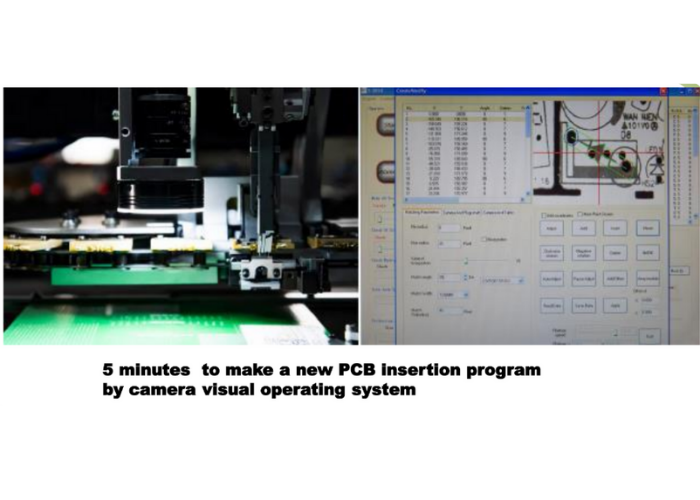

17) Coordinate correction: Machine vision systems.

18) Machine vision caliberation systems

19) Control System: English or Chinese version interface

20) Southern Machinery platform software

Applicable Examples:
