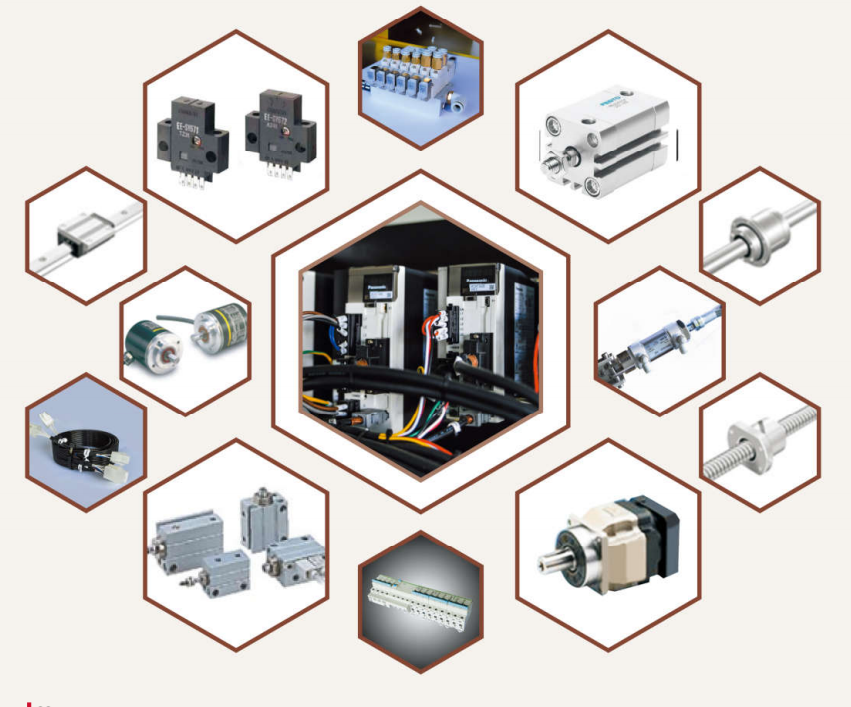

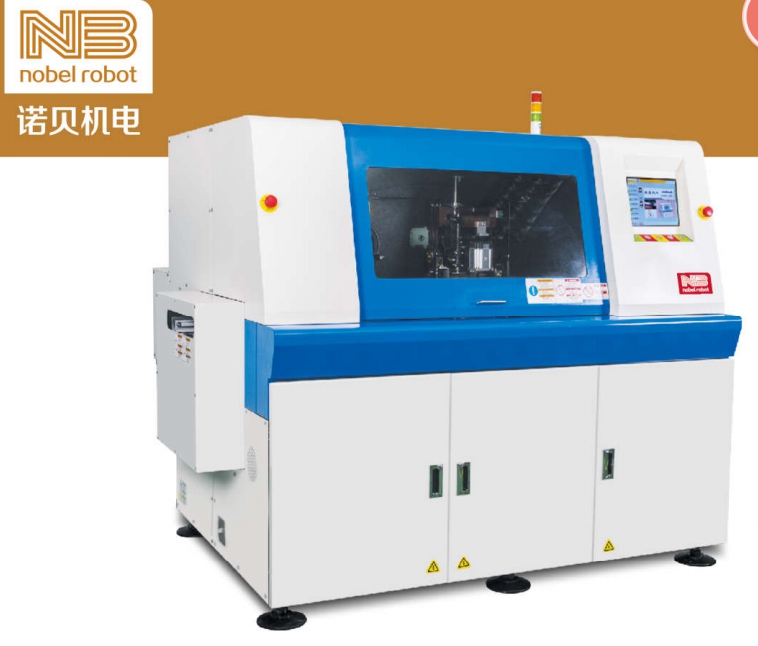

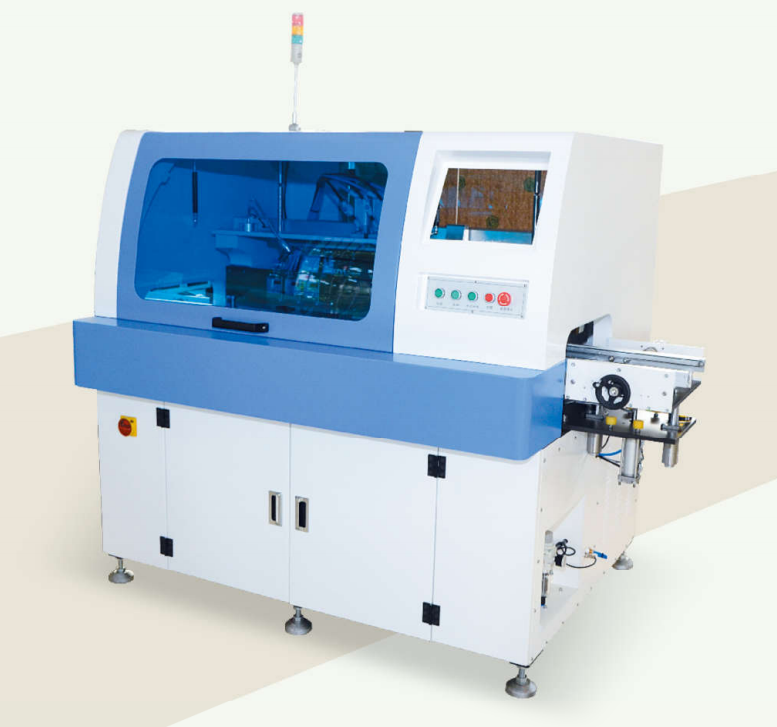

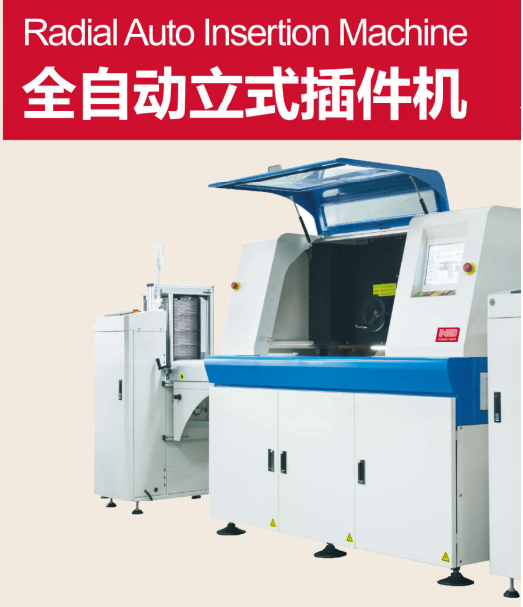

| Technical questionnaire for AI M/C review | |||
| Item # | Description | Answer | |
| 1 | M/C size (Main) | W:2140mm，D:1760mm，H:1620mm ( Excluding signal towner and material rack ) | |
| 2 | M/C size (Feeder) | 40 stations, 20 standard stations of 5.0mm, 20 stations are optional (2.5, 7.5, 10) | |
| 3 | Power source | 3pharse 380V±20V, 50/60Hz, 3.5KVA | |
| 4 | Air source | Min. 0.45 Mpa-Max. 0.8 Mpa, (Operation air pressure: 0.45 ~ 0.5 MPa) Approx. 80 L / min. (A.N.R) |
|

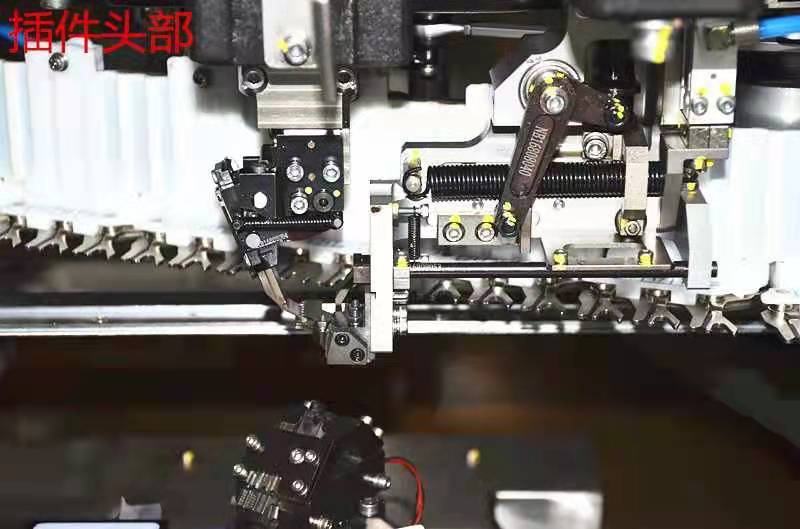

| 5 | PCB size (W x L) | Min. 50 mm × 50 mm to Max. 508 mm × 381 mm | |
| 6 | PCB thickness (Min-Max.) | Min 0.6 mm～Max 2.0 mm, Standard 1.6 mm ± 0.15 mm | |
| 7 | Max. height of the component | Height Hn = Max. 25 mm (customized specifications can be up to 26mm) | |
| 8 | Max. size of comonent | 直径 D = Max. 13 mm | |
| 9 | Max. weight of the PCBA (after insertion) | 1 kg | |
| 10 | Insertion speed | Best speed about 0.168s/point (0.20, 0.25, 0.30s/point, ability to switch | |
| 11 | CPH (Component per hour) | 21500 points | |
| 12 | Max. PPM of error | <1000 PPM | |
| 13 | Accuaucy of X & Y axis | 0.01 mm / pulse | |
| 14 | insertion direction & Increment | 360°, increasing unit by 1° Right→left (standard), or left→right (select specifications) Automatic machine interpolation / manual machine interpolation |
|
| 15 | Clinch angle (Lead bending angle) | Clinch lead angle is adjustable in a range (5°- 35°) | |
| 16 | Have camera to check the hole? | Yes | |
| 17 | Have auto recovey component function? | Yes, component feet detection | |
| 18 | Have part exhaust detection function?有没有排气检查功能? | Yes, there are warning systems in scrapped components feet | |
| 19 | Have out of component detection function? | Yes, early warning of material shortage | |
| 20 | Support non -stop opertaion?支持不间断运行吗？ | Yes, The equipment can be added with UPS, This power supply is only used by the computer to save data, and non-equipment uses backup power |
|

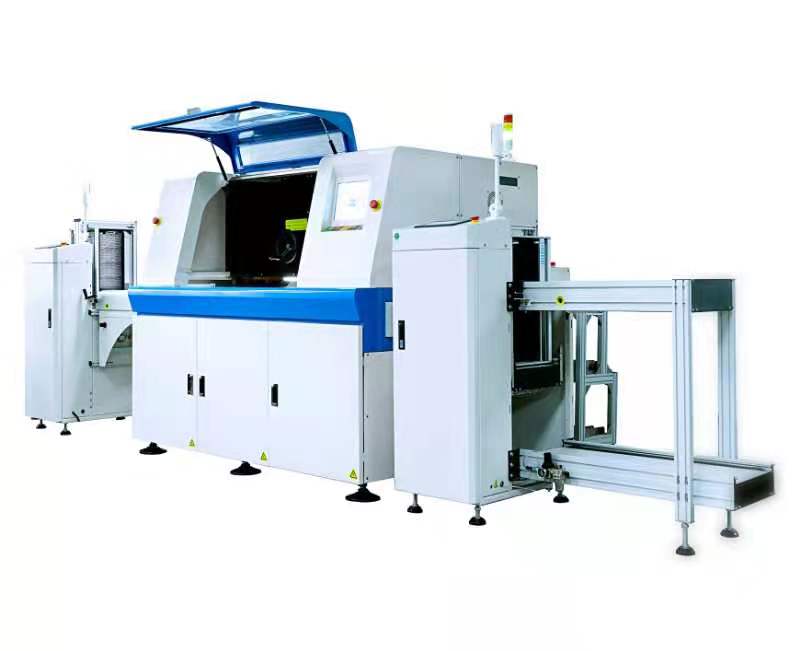

| 21 | Allow component replenishment beforehand 允许提前补货 | Yes | |
| 22 | How to transfer the PCB on the X-Y table? | Transfer the PCB automatically | |
| 23 | Max. step /program | 5000 | |
| 24 | Max. type of program can store | 1000 | |
| 25 | Window version | Win7 | |
| 26 | Have Vietnam service support? | Yes, by Vietnam NBK Technical Equipments and services Company | |
| 27 | How long to arrive at factory when receiving emergency call | 24-48 hours | |
| 28 | Have vaccuum unit? Install inside the M/C or external unit? | Yes, inside | |
| 29 | Comply with ANSI ESD E20.20? | No | |
