Features:
-
Strong, reliable and stable design
-
User friendly ‘soft touch’ LED membrane control panel or touch screen can be selected
-
Top & bottom pneumatic clamps to ensure the accurate position of PCBs
-
No PCB breakage guaranty because of special gas circuit design
-
Automatic fault detection display function
-
Wear-resistant cable and have long service life
-
SMEMA compatible
Technical parameters:
|
Description |

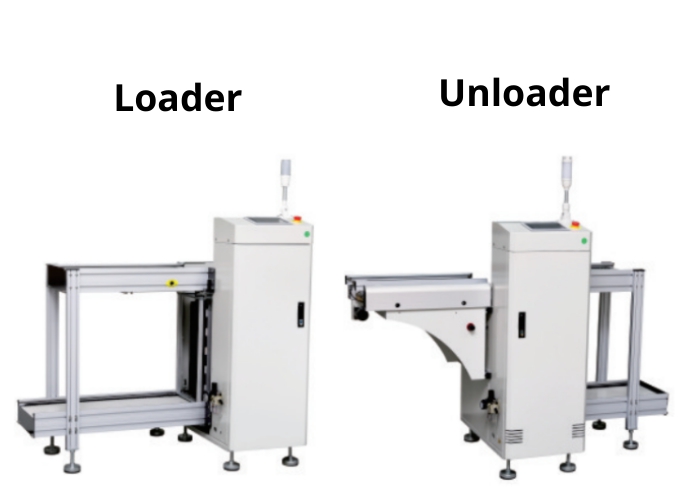

This unit is used for loading of PCBs |
|
No.of magazine |
1
|
|
Feed PCB time
|
Approx. 6 seconds or customer specify
|
|
Magazine replacement time |
Approx. 30 seconds or customer specify |
|
Pitch selection |
10, 20, 30, 40, 50mm |
|
Power supply |
AC 110V or 220V, single phase |
|
Power consumption |
Max 300VA |
|
Air pressure and Air flow volume |
4-6 bar Max 10ltr/min |
|
Conveyor Height |
900+/-20mm or customer specify |
|
Convey direction |
From left to right or right to left |
Specifications:
|
Machine name |
Model |
Dimension (LxWxH, mm) |
PCB size (LxW, mm) |
Magazine size (LxWxH, mm) |
Weight (kg) |
|
Magazine Loader |
LD - M - BN |
1330*765*1250 |
50*50 - 330*250 |
355*320*563 |
140 |
|
LD - L - BN |
1650*845*1250 |
50*50 - 445*330 |
460*400*563 |
200 |
|
|
LD - LL - BN |
1800*909*1250 |
50*50 - 530*390 |
535*460*563 |
240 |
|
|
LD - XL - BN |
1800*980*1250 |
50*50 - 530*460 |
535*530*563 |
300 |
