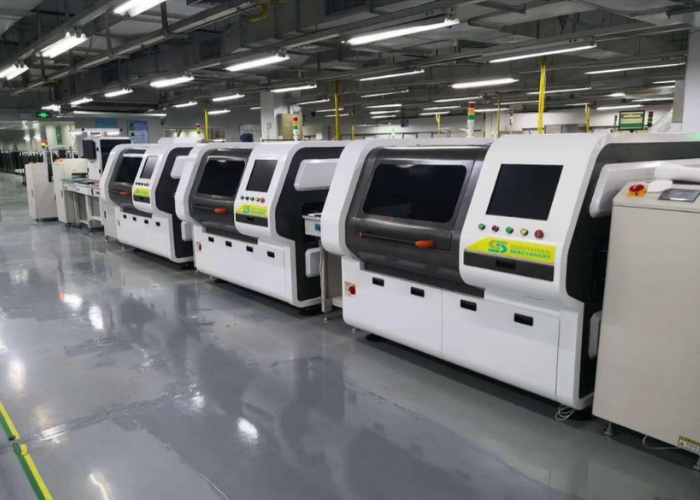

Axial Inserter S-4000

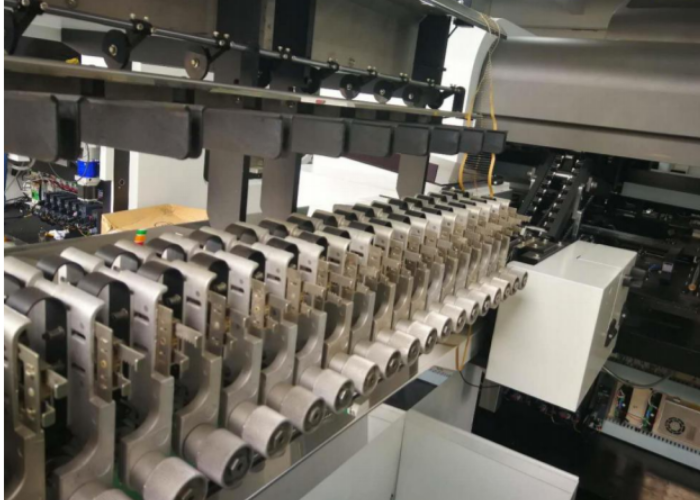

1) Sequencer components

 20 kinds, 10-100 stations optional, span range 5.0-20.0mm

2) Insertion Speed

(Test condition: PCB size 200*250mm, distributing 100 components)

20000PCS/H, Actual Speed: 13000PCS/H

3) Insert direction

Parallel 0°, 90°, 180°, 270°

4) Servo motor

 drived insertion head (5.0mm) and clinch

5) Components require

52mm Taped axial leads components; Component lead span: 5.0mm

6) Components available

Capacitor, Transistor, Diode, Resistance, Fuse, Taped axial leads components

7) Core Machine Size (LxWxH)

2100x1000x1600mm

8) Core Machine Weight

1800KG

9) 20 Station Size (LxWxH)

2200x1000x1000mm

10) 20 Station Weight

500KG

11) Power Supply

220V, AC (single phase) 50/60 HZ

12) Air Pressure

0.4-0.6MPA

13) Air Consumption

Less than 0.3 m³/minute

14) Circumstance Temperature

5-25℃

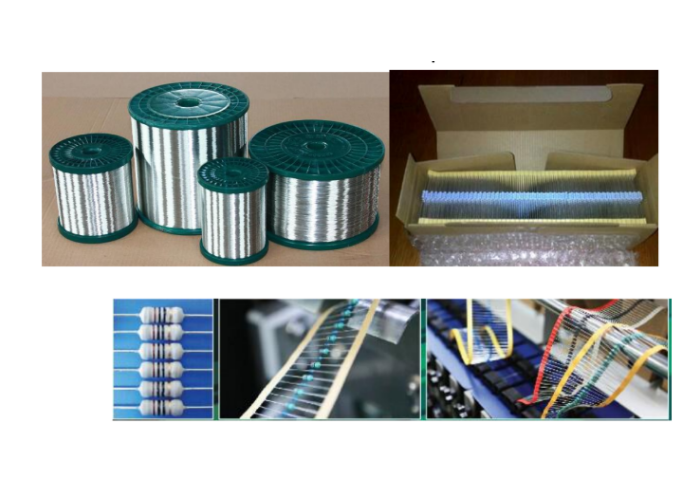

15)JW (Jumper Wire)

Independent feed device, diameter 0.5mm-0.8mm copper wire plated with tin

16) PCB transfer mode

Manual

17) PCB Size

(Min) 80 mm x50mm, (Max) 400mm x 400mm

18) PCB thickness

 0.79-2.36MM

19) Clinch Length

1.2-2.2MM (Adjustable)

20) Clinch Degree

5-35 degree (Adjustable)

21) Coordinate Calibration

MARK vision correction

22) Rotary table

Clockwise or Anticlockwise

23) Neighbor components parallel distance

E(pitch)=5.0mm

24) Tape width

52mm

25) Max Component Body Length

C=16mm , Resistor:1/8W-2W

26) Axial Lead Component Kind

Diode, Resistor, Capacitor and so on

27) Max body diameter

D=5.0mm
